Sku: 90MB1FI0-M0EAY0

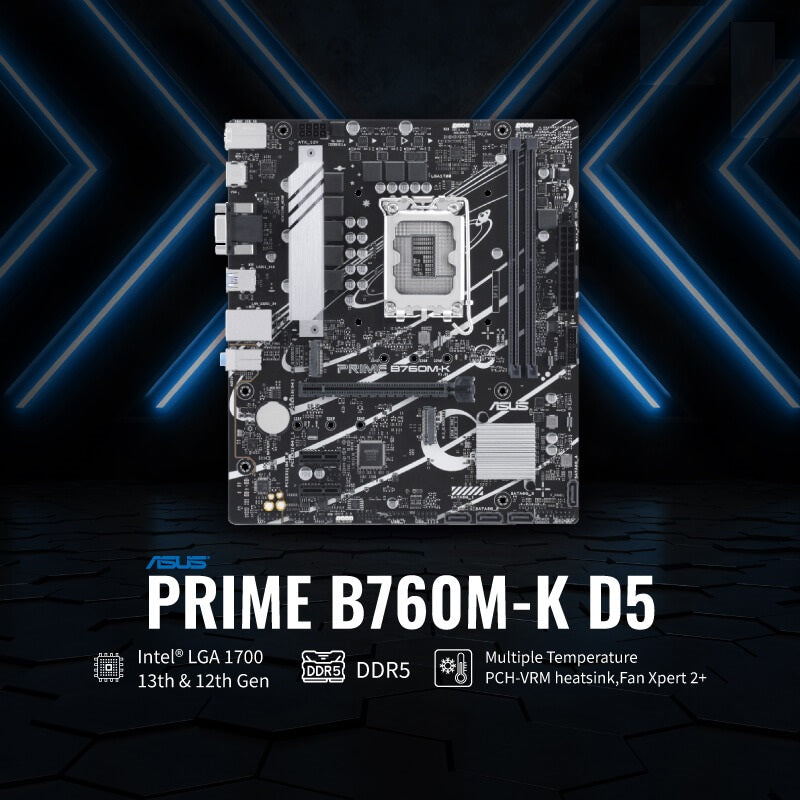

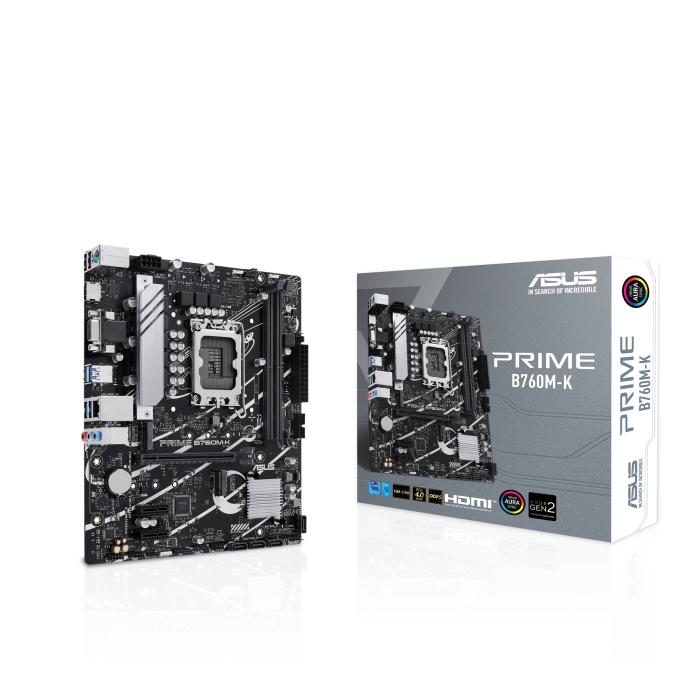

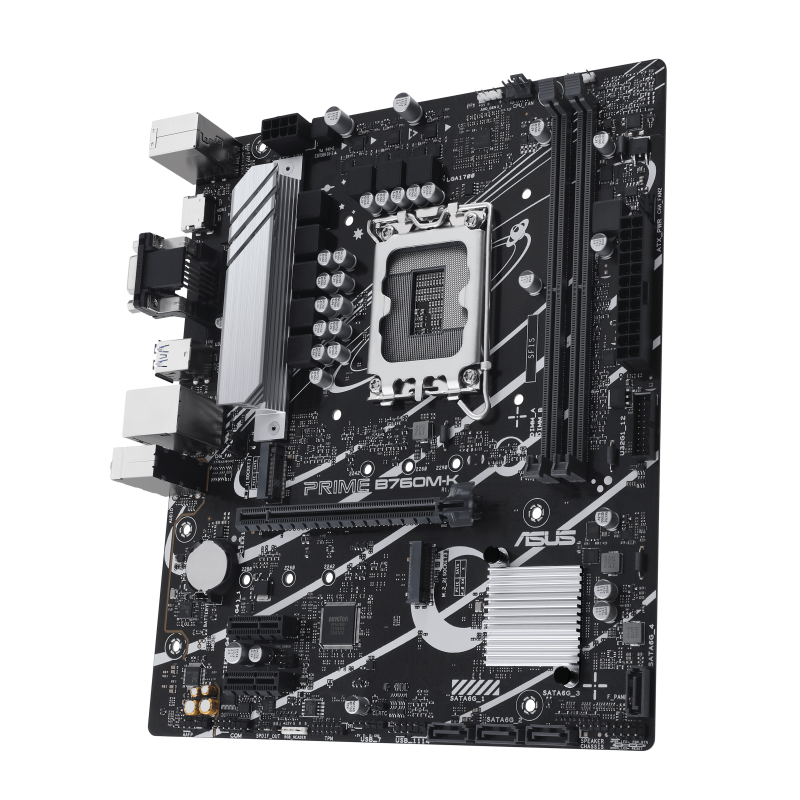

ASUS Prime B760M-K, An Intel® B760 LGA 1700 MATX Motherboard With PCIe 4.0, Two PCIe 4.0 M.2 Slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI™, SATA 6 Gbps, Front USB 3.2 Gen 1, Aura Sync

$159 USD
Vendor: Need
Only 1 items in stock! Out of stock!
WhatsApp

Tested Products • Warranty Included

    Description



    Brand Asus
    CPU socket LGA 1700
    Compatible devices 4711387198506
    RAM memory technology DDR5
    Compatible processors Intel
    Chipset type Intel B760
    Memory clock speed 1600 MHz
    Platform Windows 11
    Model name Prime B760M K
    CPU model None

    Features

    • Intel LGA1700 Socket: Ready for Intel Core 13th and 12th Gen, Pentium Gold and Celeron processors
    • Consistent, reliable performance: high quality components and rigorous testing to ensure durability in harsh environments
    • Full cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ utility expert zone
    • Aura Sync RGB Lighting: Built-in addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synchronized with Aura Sync compatible hardware
    • Two-way AI Noise Cancellation: Reduces background noise from microphone and audio output for crystal clear communication in games or video conferencing

    Properties

    This is a motherboard with the Intel B760 chipset . It offers Intel socket 1700 with support for Intel 13th and 12th generation Core/Pentium Gold/Celeron processors. The board offers 2 DIMM slots for DDR5 memory (dual-channel) with a capacity of up to 64 GB and support for frequencies up to 3200 MHz and 5333 MHz OC. The board is mATX format .

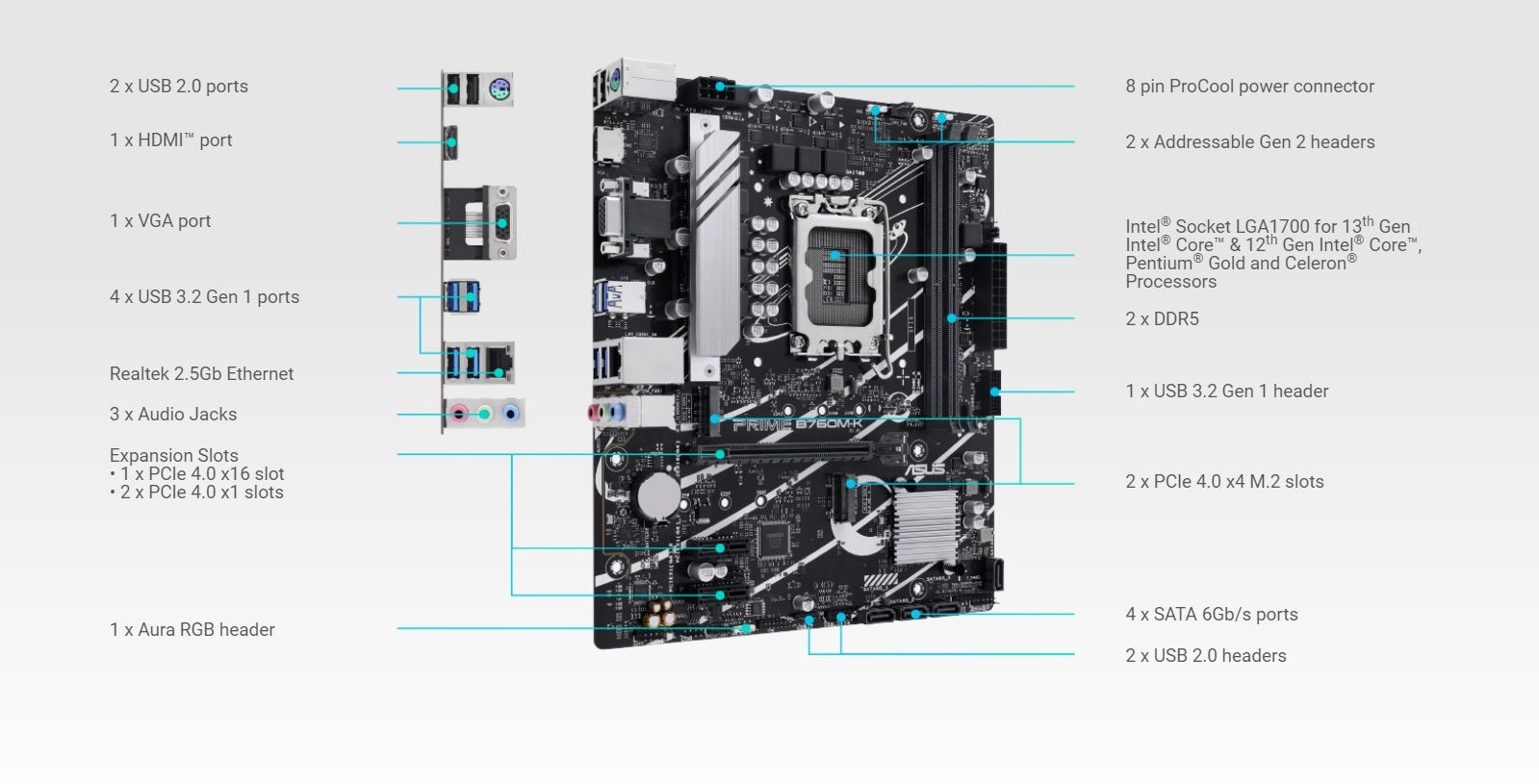

    From the interface, the board offers:

    • 5x USB 2.0 (2x on the back panel, 3x on the board)
    • 6x USB 3.2 Gen1 (4x on the back panel, 2x on the board)
    • 1x VGA, 1x HDMI 2.1, 1x 2.5G LAN, 1x PS/2, 3x 3.5 mm audio jack

    Expansion Slots:

    • 1x PCIe 4.0 x16
    • 2x PCIe 4.0 x1

    For disks, the board has:

    • 4x SATA 6Gb/s expert zone
    • 2x M.2 connectors (2x PCIe 4.0 x4 2242/60/80)

    ASUS Prime B760M-K, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

    • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
    • Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
    • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
    • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
    SPECIFICATIONS
    CPU Support 12 & 13th Generation Intel CPU
    CPU Socket Type LGA 1700 expert zone
    Chipset INTEL B760
    Form Factor ATX
    Memory Type DDR5
    Memory Speed 8000 MHz
    Maximum Memory 96 GB
    Memory Slots 2 Slots
    M.2 Slots Yes
    Wireless LAN No

    From the manufacturer

    ASUS

    ASUS is one of Fortune magazine’s Most Admired Companies and is one of the top motherboard and gaming brands as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today’s digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components, along with AR and VR

    PRIME B760M-K

    ASUS Prime B760M-K, an Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

    • Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors
    • Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
    • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ expert zone
    • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

    COOLING

    PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

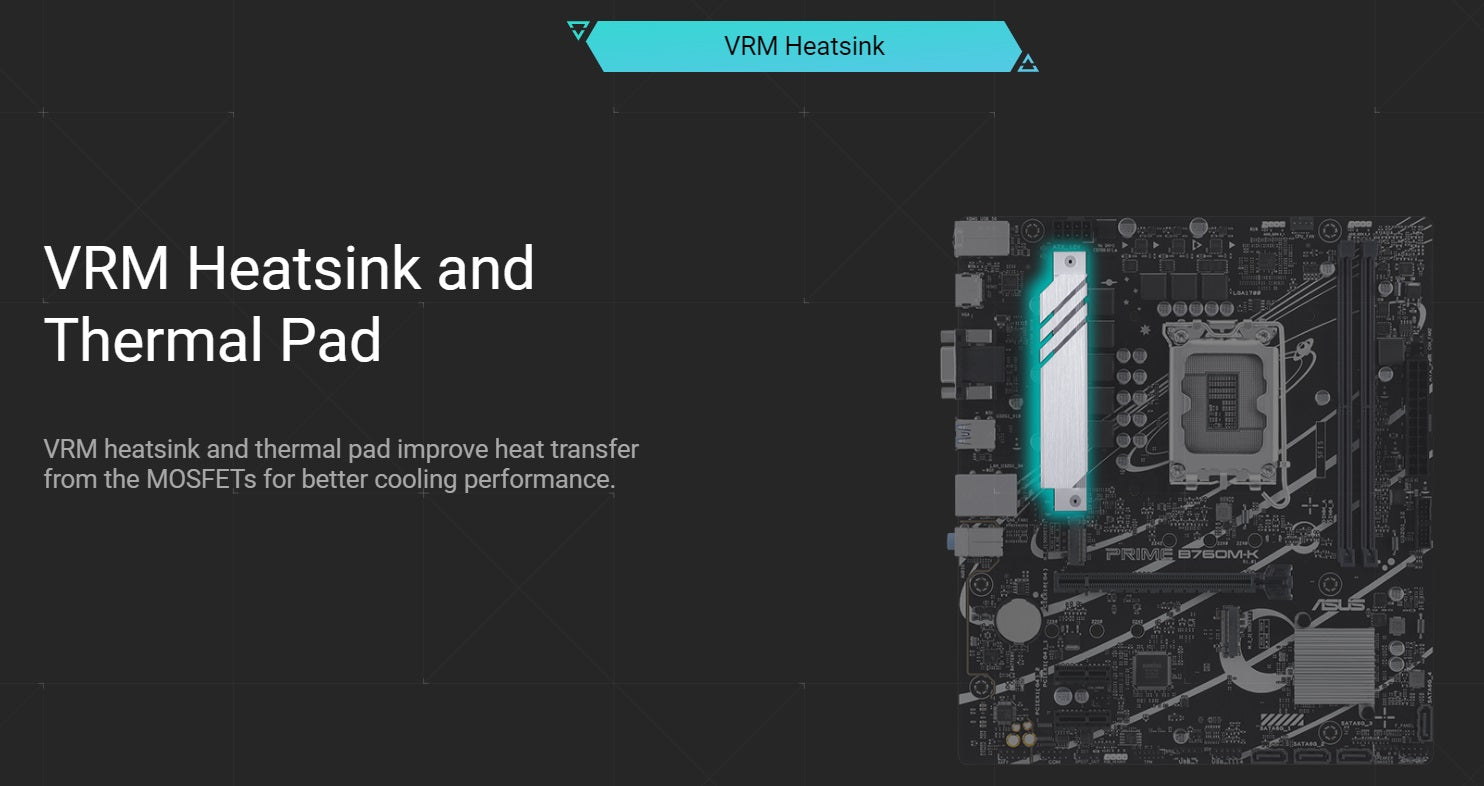

    VRM Heatsink and Thermal Pad

    VRM heatsink and thermal pad improve heat transfer from the MOSFETs for better cooling performance expert zone

    ProCool Connector

    Proprietary connectors augment the motherboard’s link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

    AEMP II for Ultimate DDR5 Performance

    ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.

    Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

    Two M.2 Slots (up to 64 Gbps)

    The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

    *Actual transmission speeds will be lower than the theoretical maximum speed expert zone

    PCIe 4.0 Slot

    The PRIME B760 motherboard is designed specifically for 13th and 12th Gen Intel CPUs and offer PCIe 4.0 connectivity for the latest GPUs.

    LANGuard

    ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.


    SafeSlot Core

    SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that’s anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots expert zone
