Sku: 90MB1B40-M0E

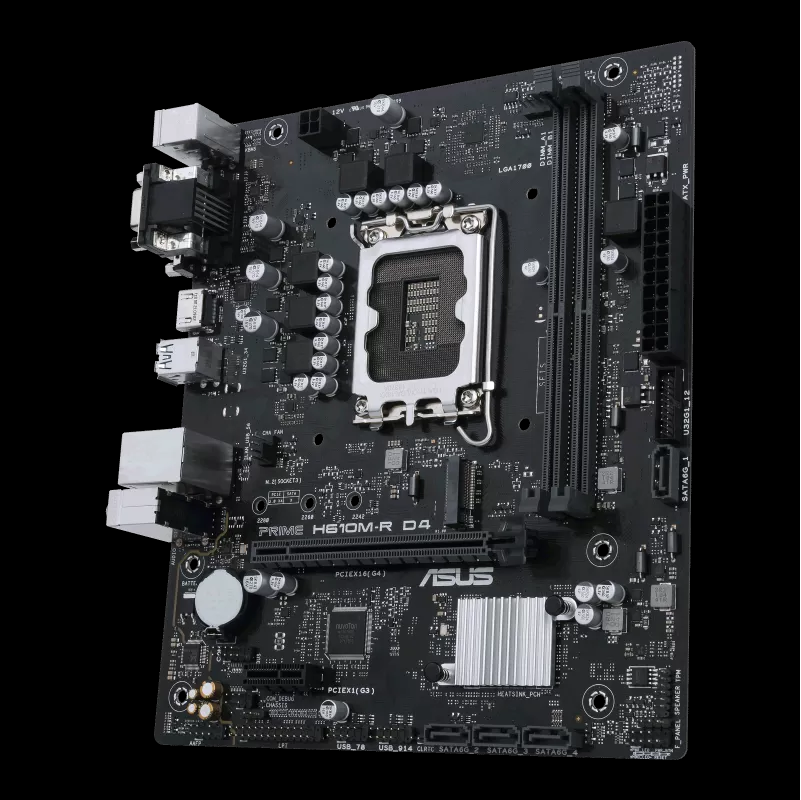

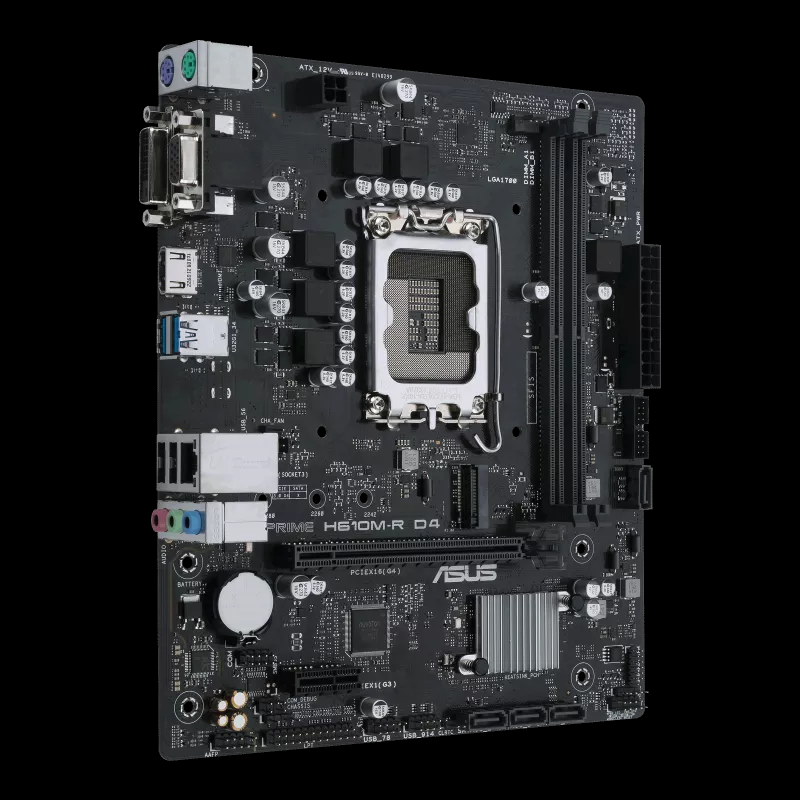

ASUS PRIME H610M-R D4-SI DDR4 MOTHERBOARD ,Intel® H610 (LGA 1700) Mic-ATX

$110 USD
$113 USD
-3%
Vendor: Need
Only 3 items in stock! Out of stock!
WhatsApp

Tested Products • Warranty Included

    Description



    ASUS PRIME H610M-R D4-SI DDR4 MOTHERBOARD Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps , COM header, LPT header, TPM header  FROM EXPERT ZONE
    • Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
    • Comprehensive cooling: PCH heatsink
    • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
    • 5X Protection III: Multiple hardware safeguards for all-round protection

    Model

    		 ASUS Prime H610M-R D4 SI

    Graphics

    		 1 x D-Sub; 1 x DVI-D; 1 x HDMI® port**

    CPU

    		 Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; Supports up to Intel® 65W CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

    Chipset

    		 Intel H610 Chipset

    Expansion Slots

    		 Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H610 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode); 4 x SATA 6Gb/s ports

    Memory

    		 1 x D-Sub port



    1 x HDMI port

    * Graphics specifications may vary between CPU types.

    ** Supports 4K@60Hz as specified in HDMI 2.1.

    Expansion Slot

    		 2 x DIMMs, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)

    I/O

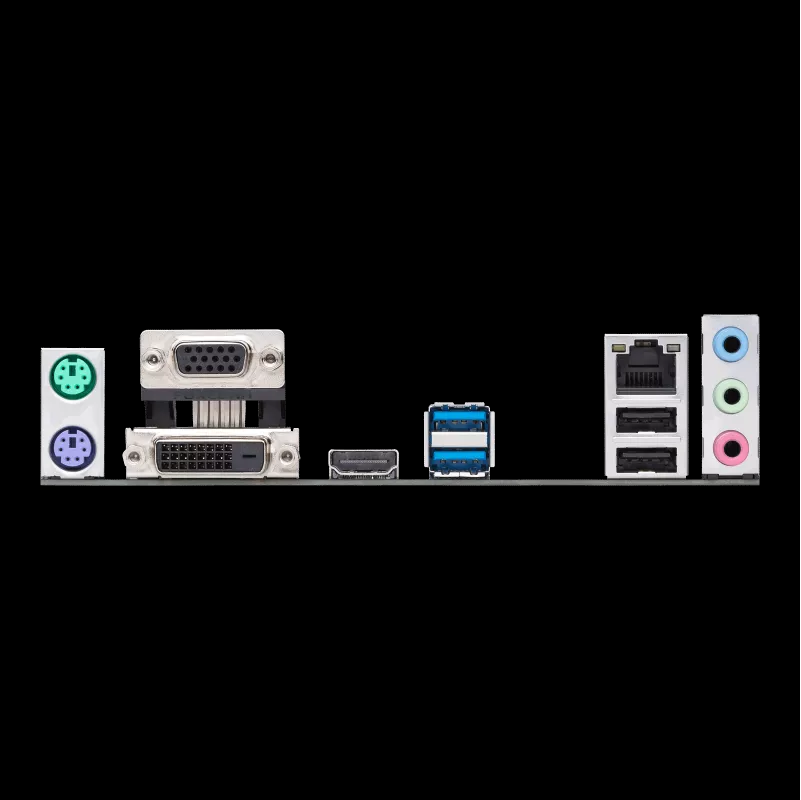

    		 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x D-Sub port; 1 x DVI-D port; 1 x HDMI® port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard (purple) port; 1 x PS/2 Mouse (green) port

    Connectors

    		 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 4-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x LPT header; 1 x Speaker header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header

    Audio

    		 Realtek 7.1 Surround Sound High Definition Audio CODEC*; – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; – Supports up to 24-Bit/192 kHz playback; Audio Features; – Audio Shielding; – Premium audio capacitors; – Dedicated audio PCB layers

    LAN

    		 1 x Realtek 1Gb Ethernet

    BIOS

    		 128 Mb Flash ROM, UEFI AMI BIOS

    Form Factor

    		 mATX Form Factor; 8.9 inches x 7.6 inches (22.6 cm x 19.3 cm )

    BIOS

    		 128 Mb Flash ROM, UEFI AMI BIOS

    OS:

    		 Windows® 11 64-bit, Windows® 10 64-bit
