1 5
Sku: 90MB1HF0-MVAAY0

ASUS PRIME Z790-V AX Motherboard DDR5 LGA1700 Intel Core 14th 13th 12th Gen Processors , 4 X DIMM Slots , PCIe 5.0 Connectivity , Two-Way AI Noise Cancellation , Addressable Gen 2 Headers- 90MB1HF0-MVAAY0

$249 USD
Vendor: Tech-GPT
Only 10 items in stock! Out of stock!
WhatsApp

Tested Products • Warranty Included

    Description



    Special Features

    • ASUS 5X PROTECTION III
      – DIGI+ VRM (- Digital power design with DrMOS)
      – LANGuard
      – Overvoltage Protection
      – SafeSlot Core+
      – Stainless-Steel Back I/O
    • ASUS Q-Design
      – Q-DIMM
      – Q-Slot
      – Q-LED Core
    • ASUS Thermal Solution
      – VRM heatsink design
    • ASUS EZ DIY
      – ProCool
    • Aura Sync
      – Aura RGB header
      – Addressable Gen 2 headers

    Software Features

    • ASUS Exclusive Software
      Armoury Crate
      – Aura Sync
      – Fan Xpert 4 (with AI Cooling II)
      – Power Saving
      -Two-Way AI Noise Cancelation
      AI Suite 3
      -TurboV EVO
      -PC Cleaner
      -DIGI+ VRM
      ASUS CPU-Z
      MyASUS
      Norton 360 Deluxe (60 Days Free Trial)
      WinRAR
    • UEFI BIOS
      ASUS EZ DIY
      – ASUS CrashFree BIOS 3
      – ASUS EZ Flash 3
      – ASUS UEFI BIOS EZ Mode

    More Specs

    Model : PRIME Z790-V AX

    CPU

    • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
    • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
      * Refer to www.asus.com for CPU support list.
      ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Intel® Z790 Chipset

    Memory

    • 4 x DIMM slots, Max. 192GB, DDR5 7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
    • Dual Channel Memory Architecture
    • Supports Intel® Extreme Memory Profile (XMP)
    • OptiMem II
      * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
      configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
      * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

    Graphics

    • 1 x HDMITM port**
      *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
      ** Supports 4K@60Hz as specified in HDMI 2.1.

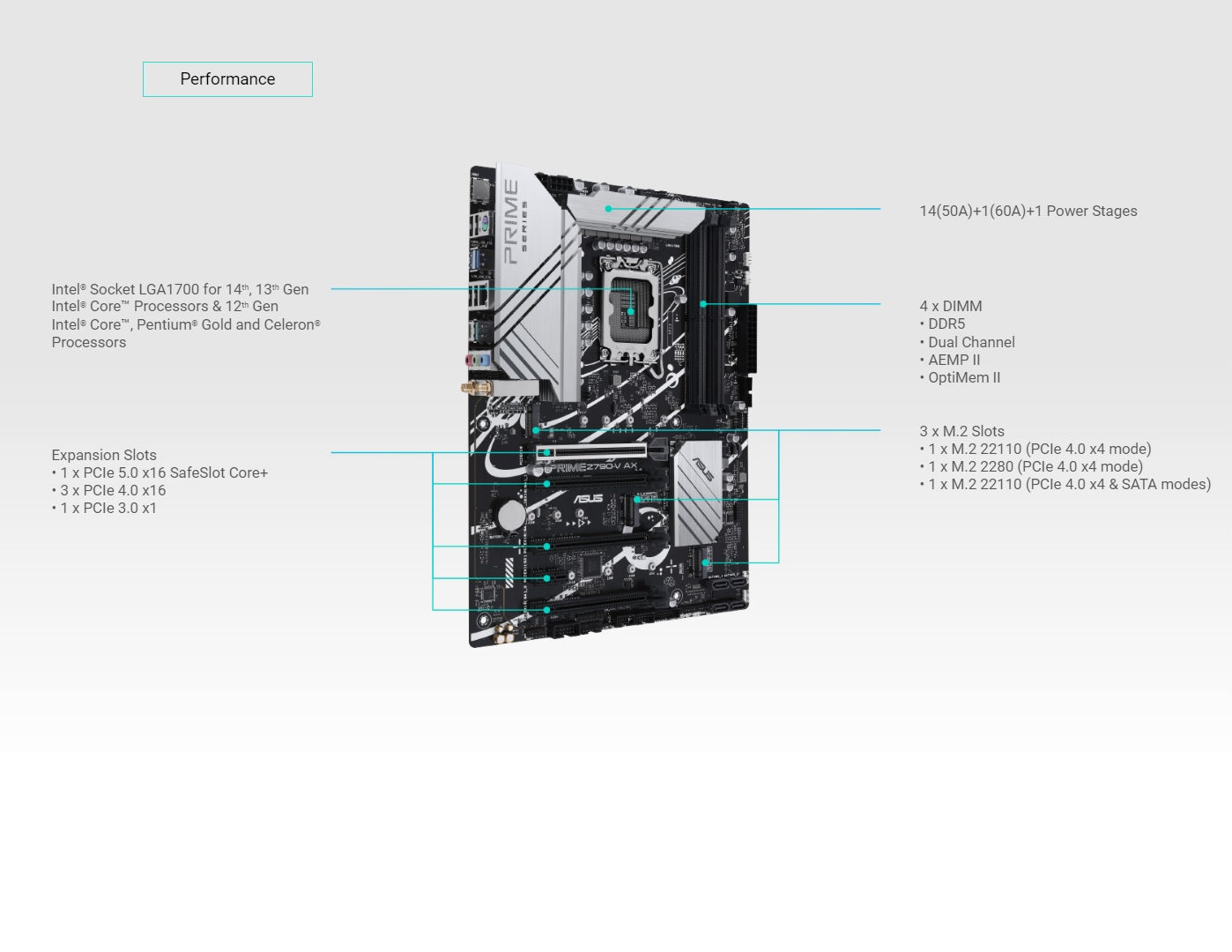

    Expansion Slots

    • Intel® Core™ Processors (14th & 13th & 12th Gen)*
      1 x PCIe 5.0 x16 slot
    • Intel® Z790 Chipset
      3 x PCIe 4.0 x16 slots (support x4 mode)
      1 x PCIe 3.0 x1 slot
      * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
      – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

    Storage

    • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
    • Intel® Core™ Processors (14th & 13th & 12th Gen)
      M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    • Intel® Z790 Chipset
      M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
      M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
      4 x SATA 6Gb/s ports
      * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

    Ethernet

    • 1 x Realtek 1Gb Ethernet

    Wireless & Bluetooth

    • Wi-Fi 6
    • Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
      Supports 2.4/5GHz frequency band
      Bluetooth® v5.3*
      *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

    USB

    • Rear USB (Total 8 ports)
      1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
      1 x USB 3.2 Gen 2 port (1 x Type-A)
      2 x USB 3.2 Gen 1 ports (2 x Type-A)
      4 x USB 2.0 ports (4 x Type-A)
    • Front USB (Total 9 ports)
      1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
      2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
      2 x USB 2.0 headers support 4 additional USB 2.0 ports
      * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
      * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

    Audio

    • Realtek 7.1 Surround Sound High Definition Audio CODEC*
      – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
      – Supports up to 24-Bit/192 kHz playback
      Audio Features
      – Audio Shielding
      – Premium audio capacitors
      – Dedicated audio PCB layers
      * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

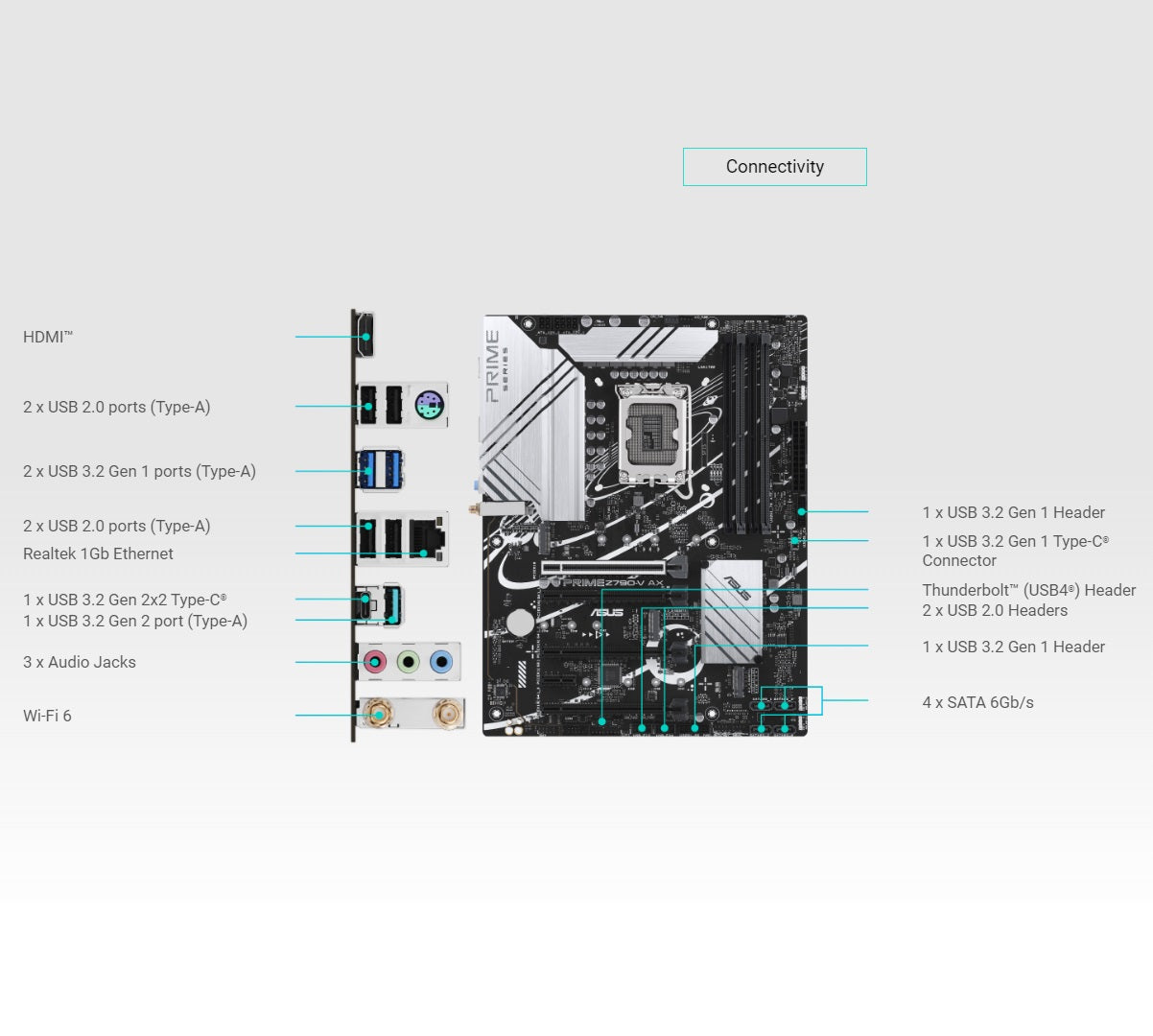

    Back Panel I/O Ports

    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    2 x USB 3.2 Gen 1 ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x HDMITM port
    1 x Wi-Fi Module
    1 x Realtek 1Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port

    Internal I/O Connectors

    • Fan and Cooling related
      1 x 4-pin CPU Fan header
      1 x 4-pin CPU OPT Fan header
      1 x 4-pin AIO Pump header
      3 x 4-pin Chassis Fan headers
    • Power related
      1 x 24-pin Main Power connector
      1 x 8-pin +12V Power connector
      1 x 4-pin +12V Power connector
    • Storage related
      3 x M.2 slots (Key M)
      4 x SATA 6Gb/s ports
    • USB
      1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
      2 x USB 3.2 Gen 1 headers support4 additional USB 3.2 Gen 1 ports
      2 x USB 2.0 headers support 4 additional USB 2.0 ports
    • Miscellaneous

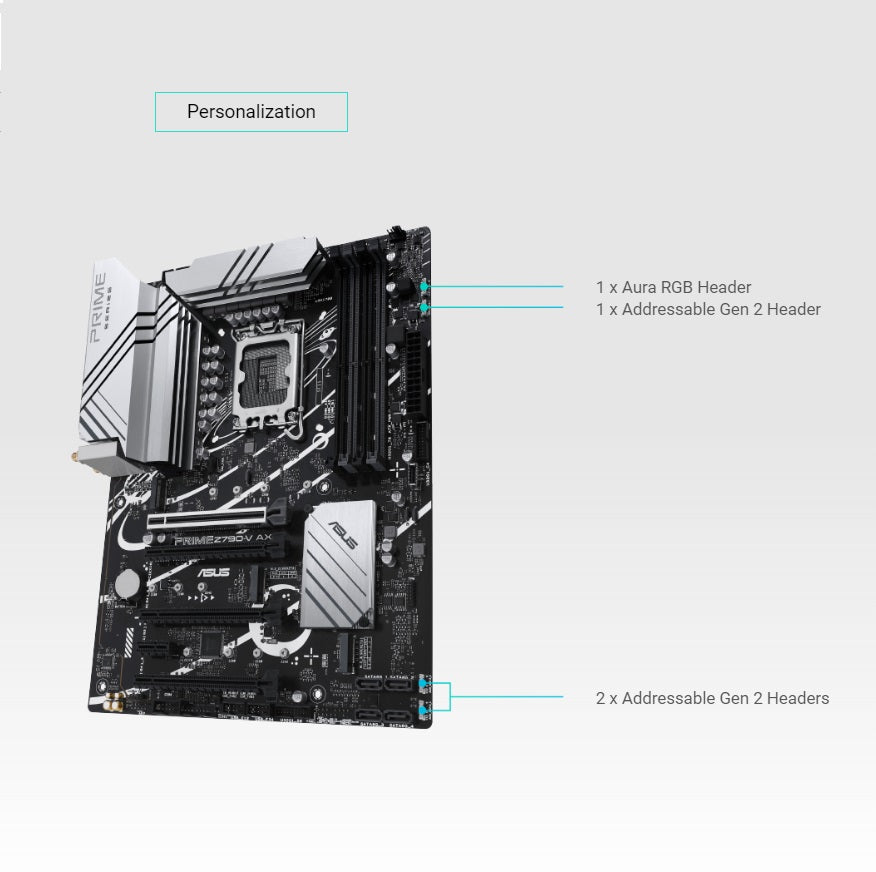

      3 x Addressable Gen 2 headers
      1 x Aura RGB header
      1 x Clear CMOS header
      1 x COM Port header
      1 x Front Panel Audio header (AAFP)
      1 x S/PDIF Out header
      1 x SPI TPM header (14-1pin)
      1 x 20-5pin System Panel header
      1 x Thunderbolt™ (USB4®) Header

    BIOS

    • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

    Manageability

    • WOL by PME, PXE

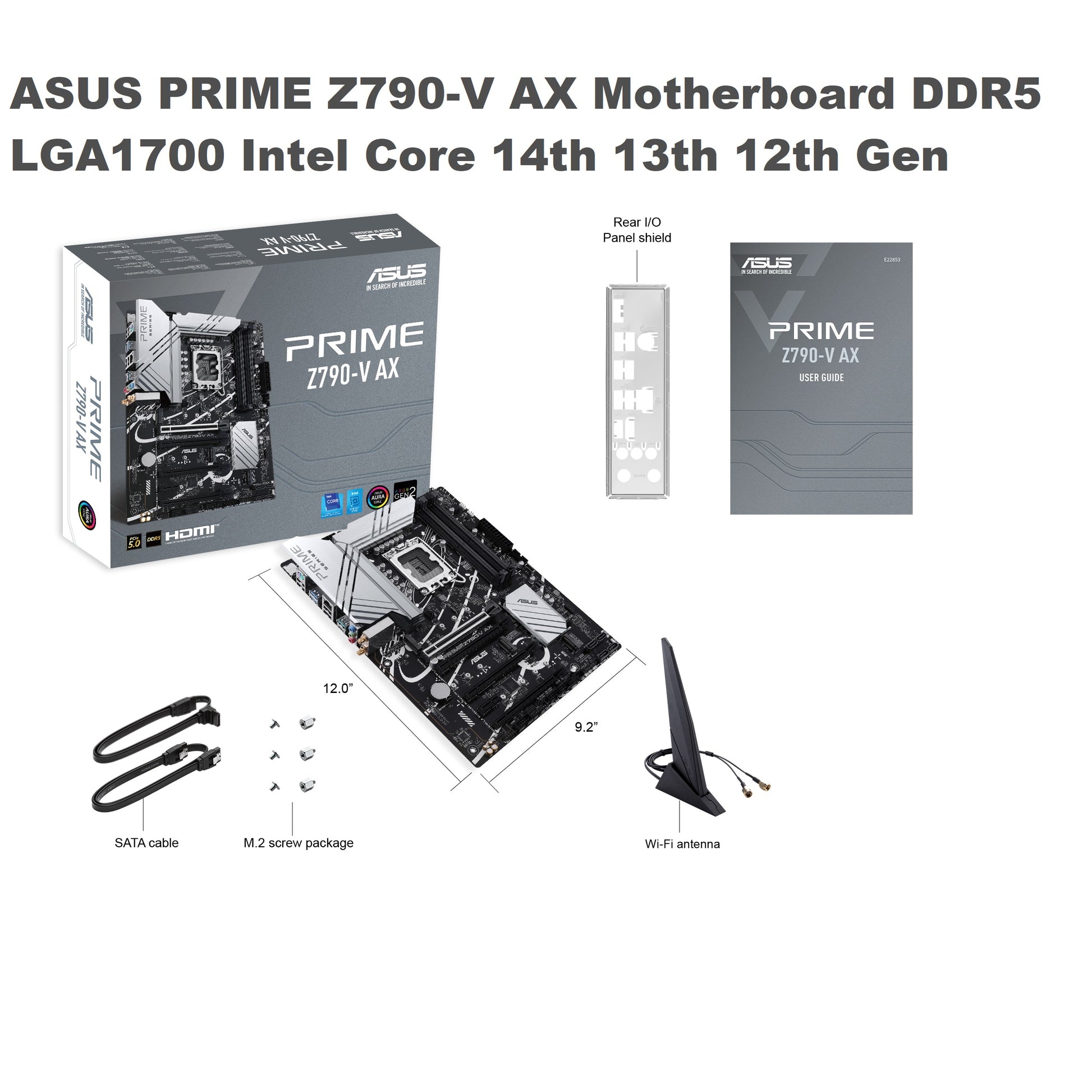

    Accessories

    • Cables
      2 x SATA 6Gb/s cables
    • Miscellaneous
      1 x ASUS Wi-Fi moving antennas
      1 x I/O Shield
      2 x Screw packages for M.2 SSD
    • Documentation
      1 x User guide

    Operating System

    • Windows® 11, Windows® 10 64-bit

    Form Factor

    • ATX Form Factor
    • 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
