Sku:
H510MH

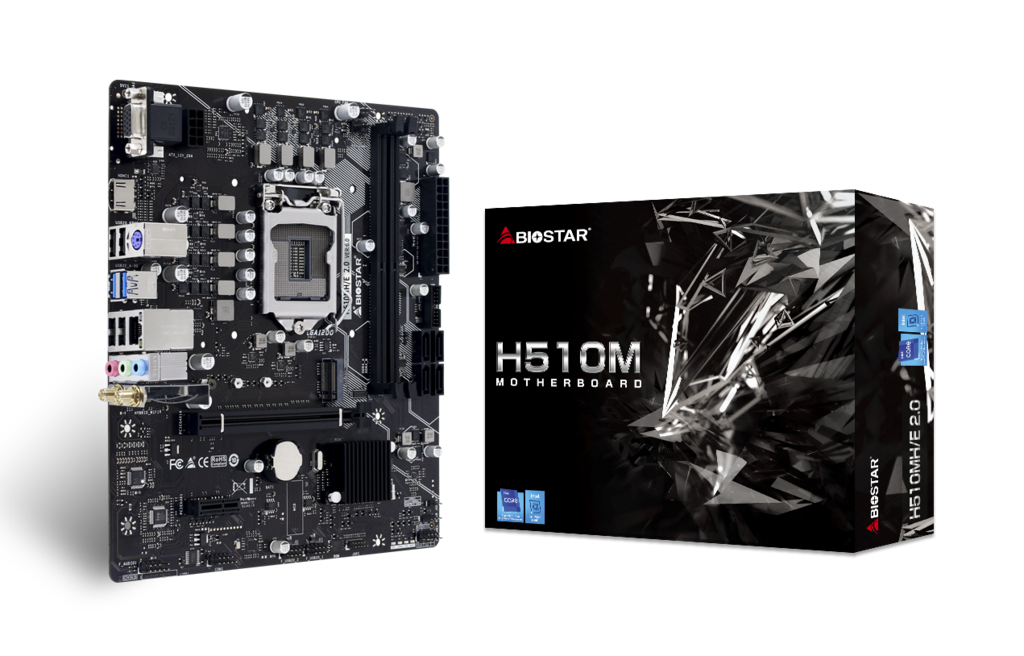

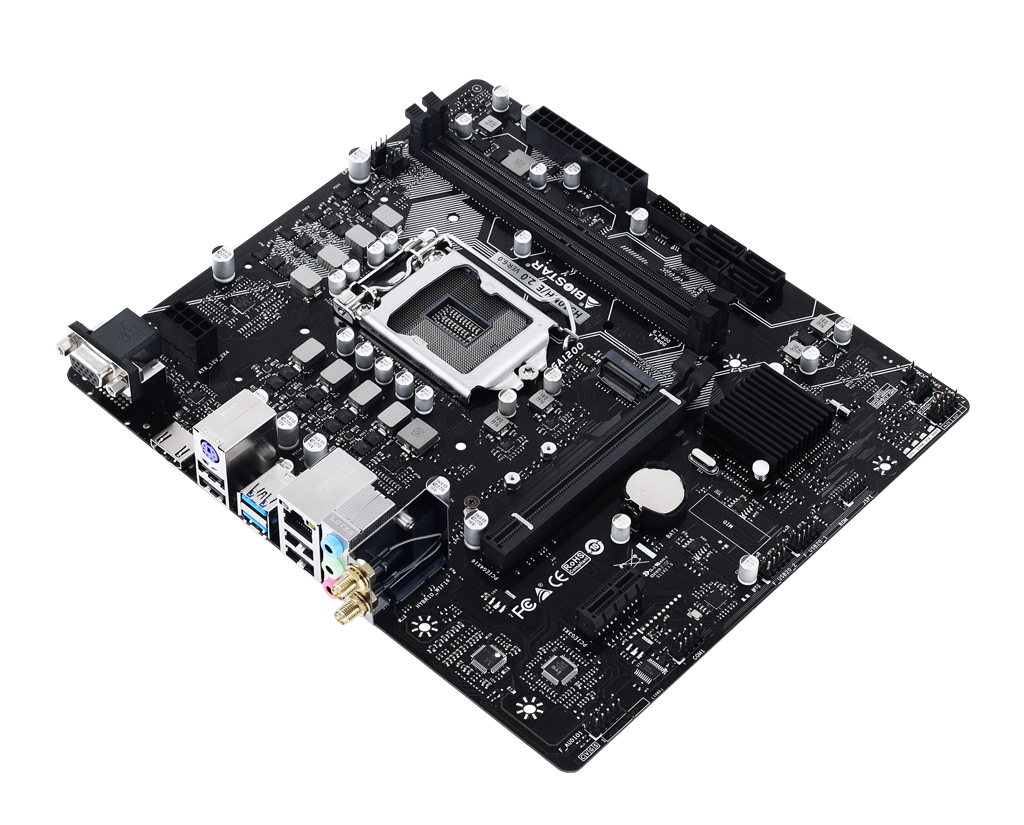

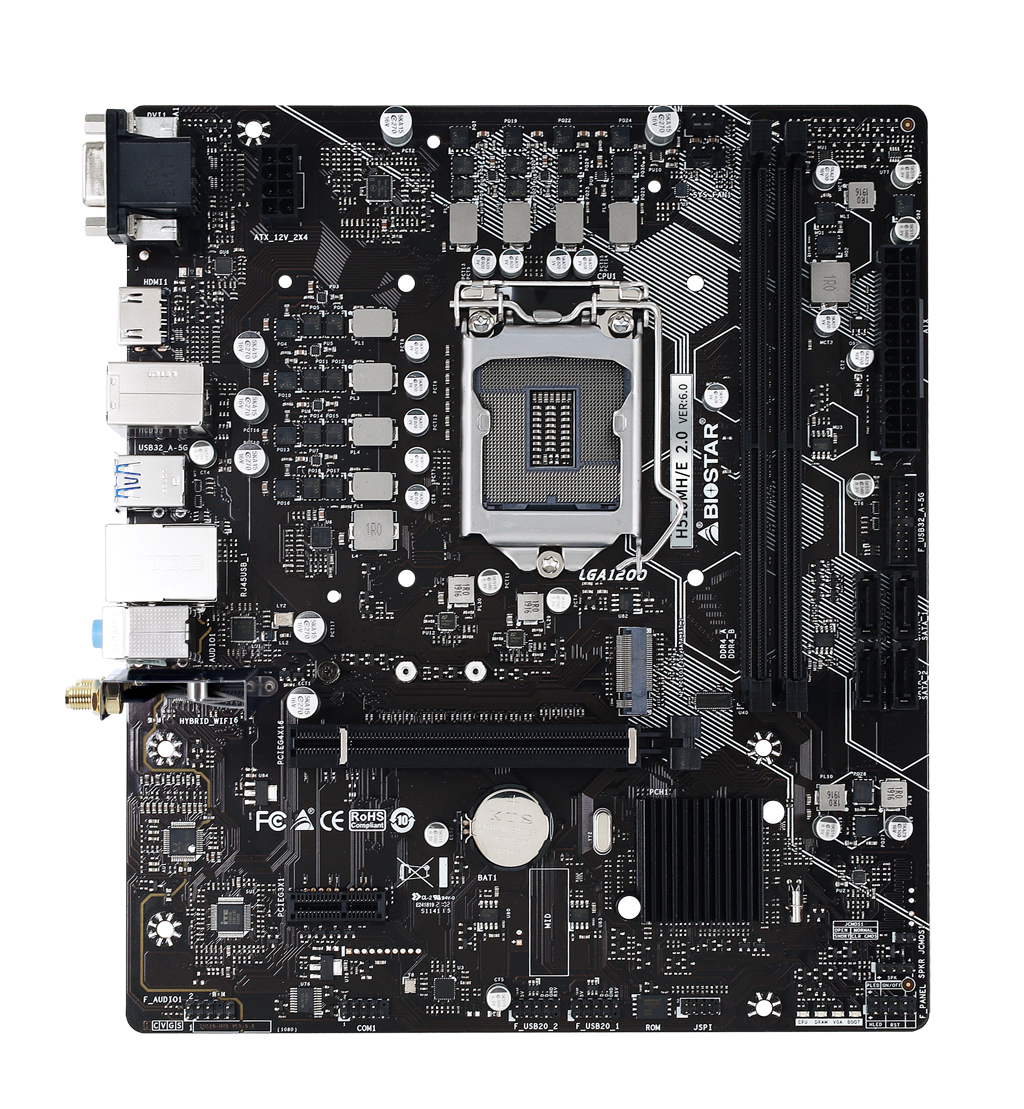

BIOSTAR GAMING BOARD H510MH
- Sale price
- $89 USD
- Regular price
-
$92 USD - Unit price
- / per
-3%
Vendor: Need
Only
4
items in stock!
Out of stock!
Tested Products • Warranty Included
Couldn't load pickup availability
Description
Description
H510MH/E 2.0 Ver. 6.0
Socket : 1200
- Supports 10th/11th Generation Intel Core™ Processor
- Intel H510 single chip architecture
- Supports 2-DIMM DDR4- 3200/ 2933/ 2666/ 2400/2133/ 1866 up to 64 GB Memory
- Supports PCIe 4.0
- Supports PCIe M.2 3.0 (32Gb/s)
- Supports USB 3.2 Gen1
- Supports WiFi 6 module (No WiFi 6 card included)
-
CPU SUPPORT Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
* Please refer to www.biostar.com.tw for CPU support list.MEMORY Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
Supports HDMI 1.4 versionSTORAGE — Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x4 (32Gb/s) – NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
* When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_1), the SATA_1 connector will be disabled.LAN Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capabilityAUDIO CODEC ALC897
7.1 Channels, High Definition AudioUSB 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)EXPANSION SLOT 1 x PCIe 3.0 x1 Slot
1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode)

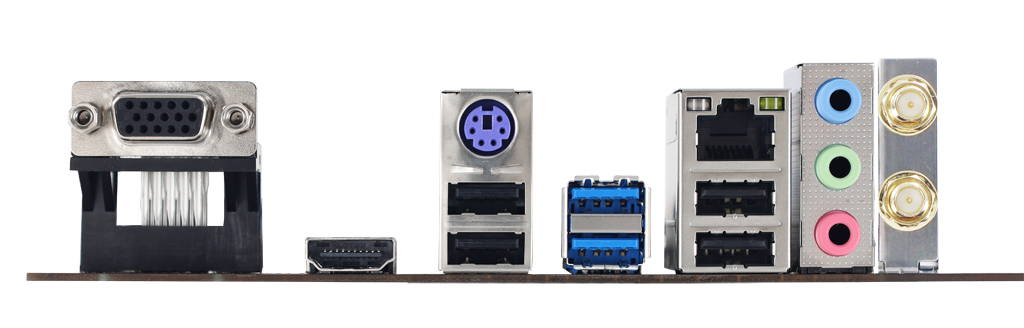

* The PCIe 4.0 only depends on Rocket Lake CPUs.REAR I/O 2 x WIFI Antenna Ports
1 x PS/2 Keyboard / Mouse
1 x HDMI Port
1 x VGA Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Port
1 x LAN port
3 x Audio JackINTERNAL I/O 4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
* M.2 (E key) Wi-Fi card is not providedH/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage MonitoringDIMENSION Micro ATX Form Factor Dimension: 20.8 cm x 23.6 cm ( W x L ) OS SUPPORT Supports Windows 10(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.BUNDLE SOFTWARE BullGuard ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x WiFi accessoriesFEATURES BIOS-Flasher
