Sku: 911-7D99-013

MSI PRO B760M-A DDR4 II MOTHERBOARD

$160 USD
$185 USD
-14%
Vendor: Need
Only 2 items in stock! Out of stock!
WhatsApp

Tested Products • Warranty Included

    Description



    MSI PRO B760M-A DDR4 II MOTHERBOARD

    CHIPSET INTEL B760
    CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    MEMORY 4x DDR4, Maximum Memory Capacity 128GB
    Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 5333+ MHz
    • 1DPC 2R Max speed up to 4800+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz



    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)
    ONBOARD GRAPHICS 2x HDMI™
    Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
    2x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    SLOT 2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    STORAGE 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 3.2 Gen1 Type A (Rear)
    4x USB 3.2 Gen1 Type A (Front)
    1x USB 3.2 Gen1 Type C (Front)
    2x USB 3.2 Gen2 Type A (Rear)
    LAN Realtek® RTL8125BG 2.5G LAN
    AUDIO Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    INTERNAL IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    2x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen1 Type C ports
    LED FEATURE 4x EZ Debug LED

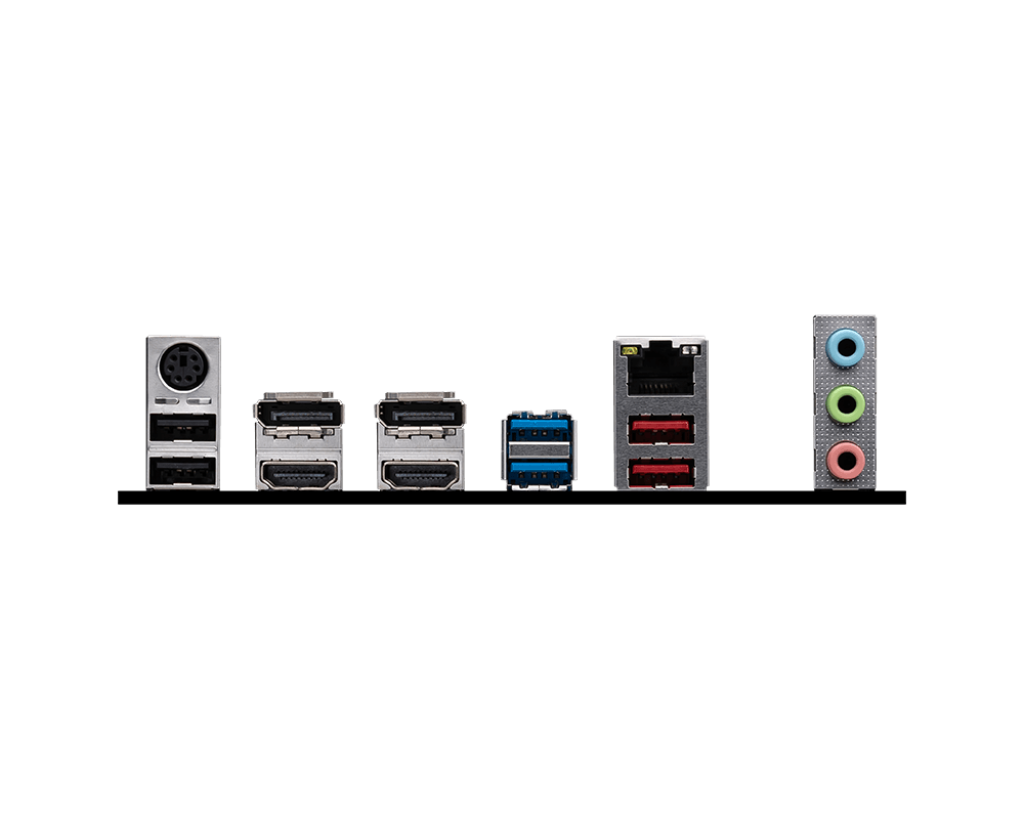

    BACK PANEL PORTS



    1. Keyboard / Mouse
    2. DisplayPort
    3. USB 3.2 Gen 1 5Gbps (Type-A)
    4. 2.5G LAN
    5. Audio Connectors
    6. USB 2.0
    7. HDMI™
    8. USB 3.2 Gen 2 10Gbps (Type-A)
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB INFO mATX
    243.84mmx243.84mm
