Sku: 911-7D48-035

MSI PRO B760M-E DDR5 Motherboard, Micro-ATX – Supports Intel 12th & 13th Gen Core Processors, LGA 1700 – DDR5 Memory Boost 5600MHz, PCIe 4.0 X16 Slot, M.2 Gen4 Slot

$127 USD
$132 USD
-4%
Vendor: Need
Only 5 items in stock! Out of stock!
WhatsApp

Tested Products • Warranty Included

    Description

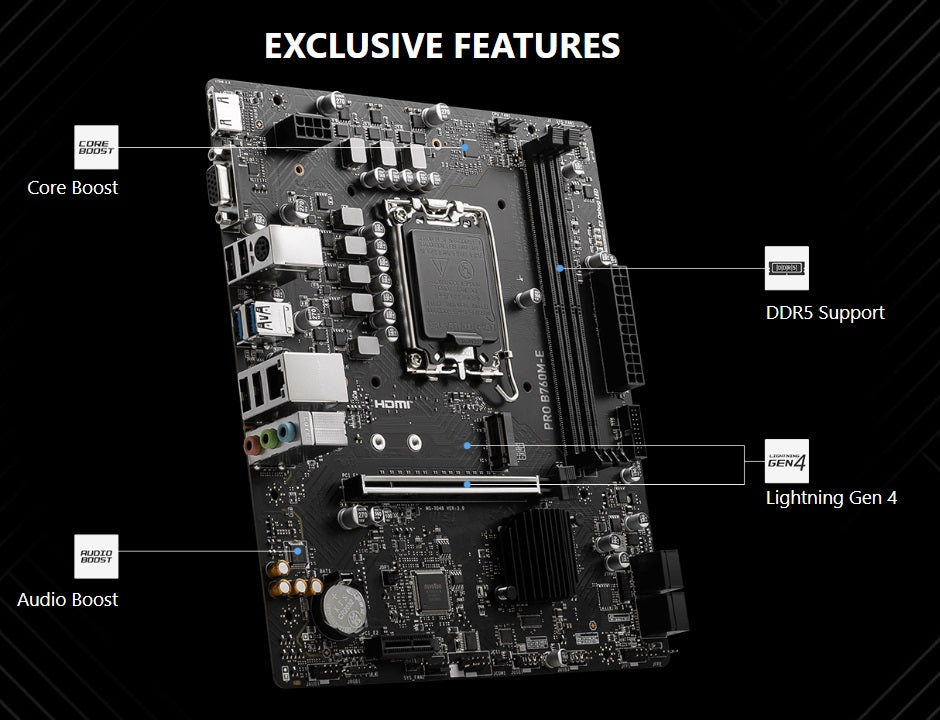

    Features

    • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
    • Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
    • Core Boost : With premium layout and digital power design to support more cores and provide better performance
    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

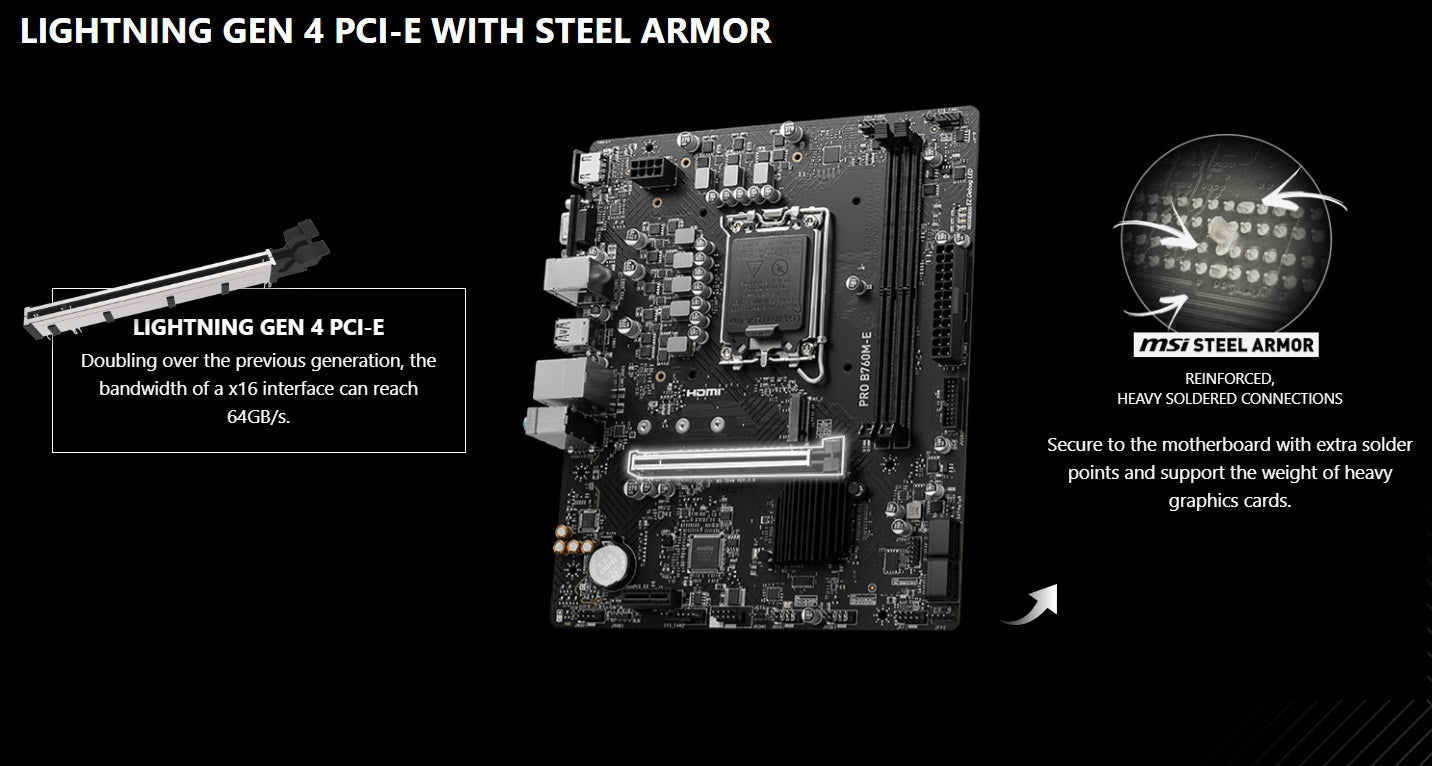

    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

    Specs

    CHIPSET INTEL B760
    CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    MEMORY 2x DDR5, Maximum Memory Capacity 128GB
    Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6400+ MHz
    • 1DPC 2R Max speed up to 5600+ MHz



    • Supports Intel® XMP 3.0 OC
    • Supports Dual-Controller Dual-Channel mode
    • Supports non-ECC, un-buffered memory
    AUDIO Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    STORAGE 1x M.2
    M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
    LAN Realtek® RTL8111H Gigabit LAN
    ONBOARD GRAPHICS 1x HDMI™
    Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
    1x VGA
    Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    SLOT
    • 1x PCI-E x16 slot
    • 1x PCI-E x1 slot
    • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB
    • 4x USB 2.0 (Rear)
    • 4x USB 2.0 (Front)
    • 2x USB 5Gbps Type A (Rear)
    • 2x USB 5Gbps Type A (Front)
    INTERNAL IO
    • 1x Power Connector(ATX_PWR)
    • 1x Power Connector(CPU_PWR)
    • 1x CPU Fan
    • 2x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 1x Com Port (JCOM)
    • 1x RGB LED connector(JRGB)
    • 1x TPM pin header(Support TPM 2.0)
    • 4x USB 2.0 ports
    • 2x USB 5Gbps Type A ports
    LED FEATURE 4x EZ Debug LED

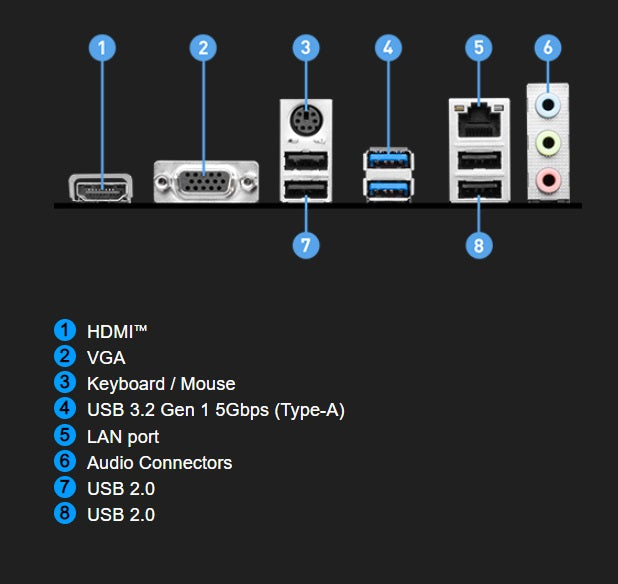

    BACK PANEL PORTS



    1. HDMI™
    2. VGA
    3. Keyboard / Mouse
    4. USB 3.2 Gen 1 5Gbps (Type-A)
    5. LAN port
    6. Audio Connectors
    7. USB 2.0
    8. USB 2.0
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB INFO mATX
    200mmx236.16mm

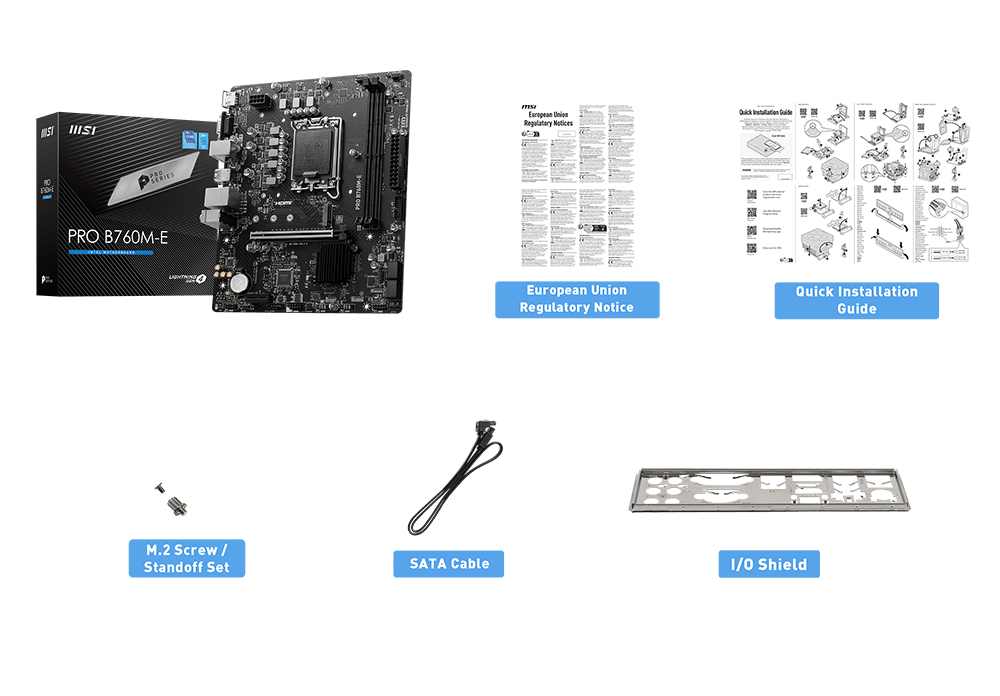

    BOX CONTENT
